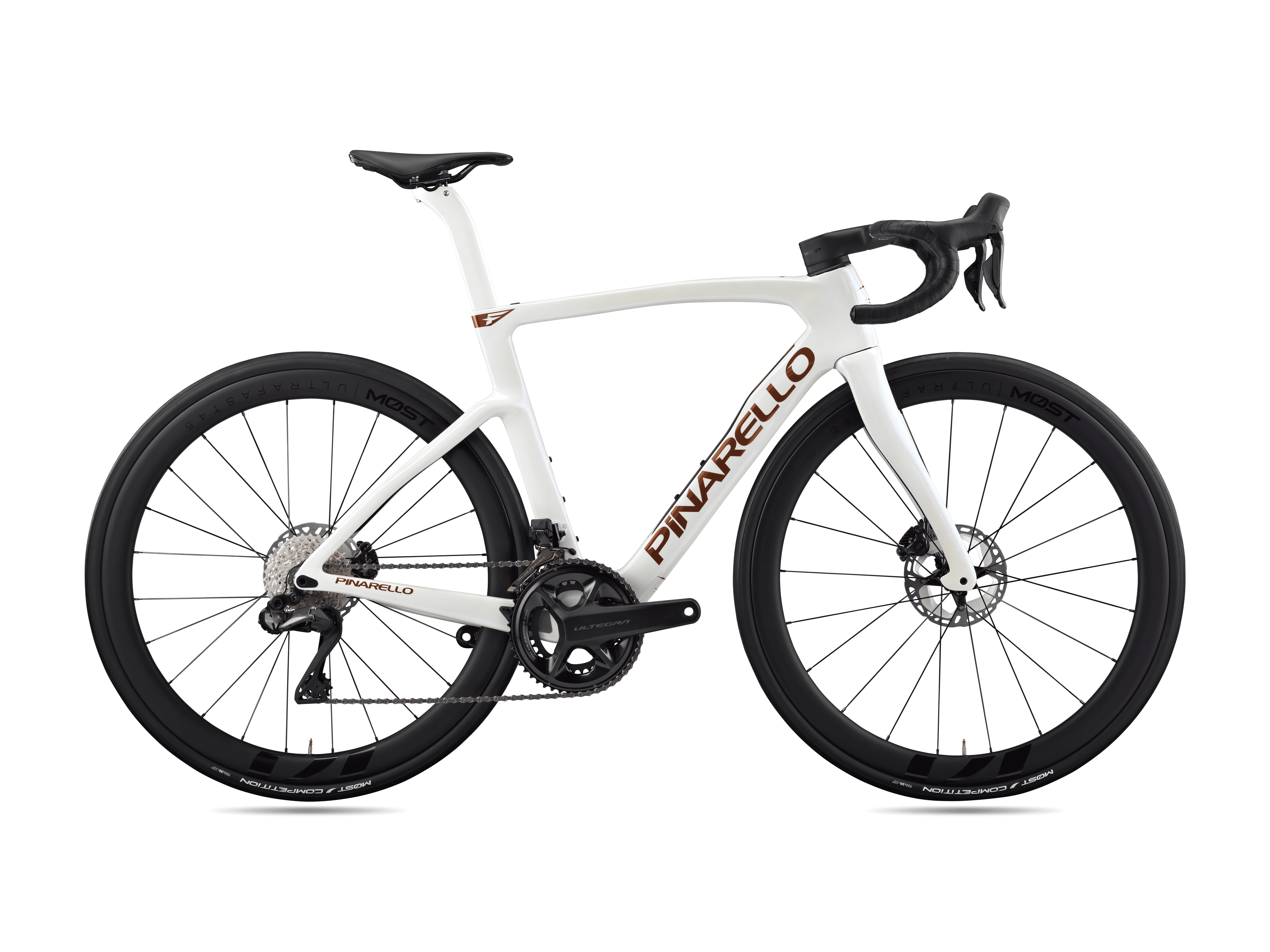

2026 PINARELLO F7 ULTEGRA Di2
£6,500.00
BORN TO RACE, NO DISCUSSION
Our history is one of extraordinary victories, iconic bicycles, passion, and expertise. The new Pinarello F was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. For this reason, the Pinarello F is designed to excel on all terrain and is as adept at climbing as it is comfortable on a high-speed descent. This is what we mean by ALL-ROUND PERFORMANCE.
Innovation
TYRE CLEARANCE UP TO 32MM
DOWN TUBE
ONDA FORK
E-TICR HEADSET
HEAD TUBE
AERO KEEL
INTEGRATED SEATCLAMP
DOWN TUBE
ONDA FORK
E-TICR HEADSET
HEAD TUBE
AERO KEEL
INTEGRATED SEATCLAMP
Geometries
| CE | CC | L | A [°] | B [°] | P | T | D | R | G | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 430 | 500 | 74.4 | 69.5 | 406 | 97 | 67 | 43 | 373 | 351.3 | 502.5 |
| 450 | 465 | 515 | 74.4 | 70.5 | 406 | 104 | 72 | 43 | 373 | 365.2 | 517.7 |
| 465 | 500 | 525 | 74 | 71.4 | 408 | 109 | 72 | 43 | 373 | 372.1 | 525.5 |
| 485 | 515 | 535 | 73.7 | 72 | 408 | 114 | 72 | 43 | 373 | 378.1 | 532.3 |
| 500 | 530 | 545 | 73.7 | 72.5 | 408 | 123 | 72 | 43 | 373 | 385.6 | 542.6 |
| 515 | 545 | 555 | 73.4 | 72.8 | 410 | 138 | 72 | 43 | 373 | 388.3 | 557.9 |
| 525 | 560 | 565 | 73 | 73.2 | 410 | 149.5 | 72 | 43 | 373 | 390.8 | 570.3 |
| 560 | 575 | 578 | 73 | 73.7 | 410 | 178 | 72 | 43 | 373 | 395.4 | 599.3 |
| 580 | 595 | 600 | 72.4 | 73.4 | 410 | 220 | 67 | 43 | 373 | 400.3 | 633.5 |
CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
ALL COMPONENTS
FRAME SET
FRAME
TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved
DRIVETRAIN
CRANKSET AND CHAINRINGS
Shimano Ultegra 12S
FRONT DERAILLEUR
Shimano Ultegra 12S
CASSETTE
Shimano Ultegra 12S
BOTTOM BRACKET
Shimano Ultegra 12S
BRAKES
FRONT BRAKE DISC
Shimano Ultegra R8150, 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Shimano Ultegra R8150, 2 pistons caliper, 140mm rotor
COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Fast
BAR TAPE
most bar tape
SADDLE
Most Lynx My26
SEATPOST
fsc frontal seat clamp
WHEELS AND TIRES
TYRES DISC
MOST 30
WHEELSET DISC
MOSt Ultrafast 45
AXLES DISC
NEW MOST Ultra Light Custom Axle 12×100 & 12×142, tool free removal
RRP £6,500.00
