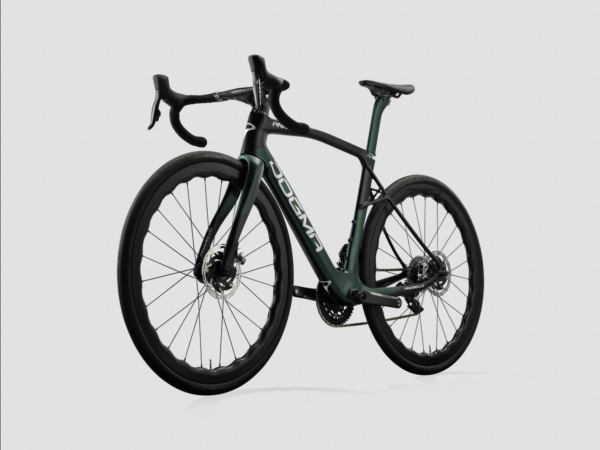

Pinarello Dogma X Dura-Ace Di2 E203 XOLAR GREEN
£13,300.00
PURE CYCLING MULTIPLIED BY X
Inspired by riders who enjoy long days in the saddle, the DOGMA X is about more than just performance; the bike has been engineered from the ground up to heighten the emotional experience of cycling and reshape how we think about endurance and speed.
It will redefine how we think about performance, offering real-world comfort.
CARBON T1100 1K
X STAYS
ASYMMETRIC FRAME PINARELLO X
ENDURANCE GEOMETRY
TYRE CLEARANCE UP TO 35MM
CARBON T1100 1K
High tensile and high modulus carbon fiber with patented Nanoalloy Technology for extreme performances.
ENDURANCE GEOMETRY
A brand new approach that strikes the perfect balance between high-calibre performance and real-world comfort.
X STAYS
A new Pinarello technology capable of absorbing vibrations maintaining a light weight frame and a very reactive BB stiffness
ASYMMETRIC FRAME PINARELLO X
For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.
TYRE CLEARANCE UP TO 35MM
35mm tires to unlock the frames’ true potential in terms of both comfort and speed.
Geometries
CE | CC | L | A [°] | B [°] | P | T | D | R | G | REACH | STACK |
---|---|---|---|---|---|---|---|---|---|---|---|
425 | 430 | 492 | 75.25 | 70 | 422 | 123 | 67 | 52 | 375 | 341.9 | 527.5 |
450 | 460 | 509 | 74.5 | 70.5 | 422 | 128 | 72 | 52 | 375 | 352.1 | 539.2 |
470 | 490 | 525 | 74 | 71 | 422 | 140 | 72 | 52 | 375 | 361.9 | 552.4 |
495 | 515 | 536 | 73.75 | 71.5 | 422 | 149 | 72 | 47 | 375 | 368.5 | 564.4 |
510 | 530 | 545 | 73.5 | 72 | 422 | 159 | 72 | 47 | 375 | 372.5 | 575.8 |
525 | 545 | 555 | 73.25 | 72.25 | 422 | 171 | 72 | 47 | 375 | 376.7 | 588.2 |
540 | 560 | 565 | 73 | 72.5 | 422 | 185 | 72 | 47 | 375 | 380.2 | 602.4 |
560 | 580 | 577 | 72.75 | 72.5 | 422 | 209 | 67 | 47 | 375 | 384.1 | 620.3 |
590 | 600 | 590 | 72.5 | 72.5 | 422 | 230 | 67 | 47 | 375 | 388.1 | 640.4 |
CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
ALL COMPONENTS
* also available with DTSWISS ERC1400
