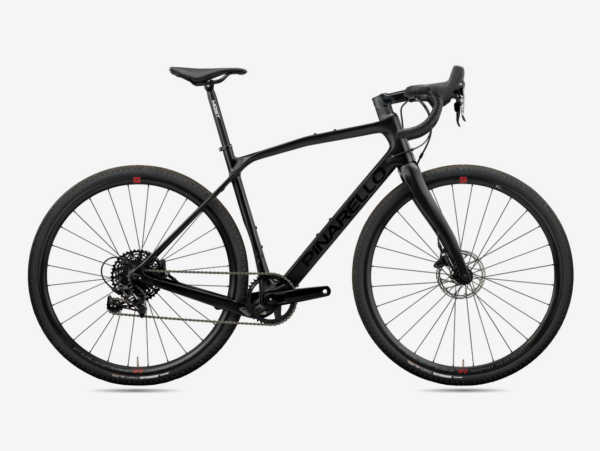

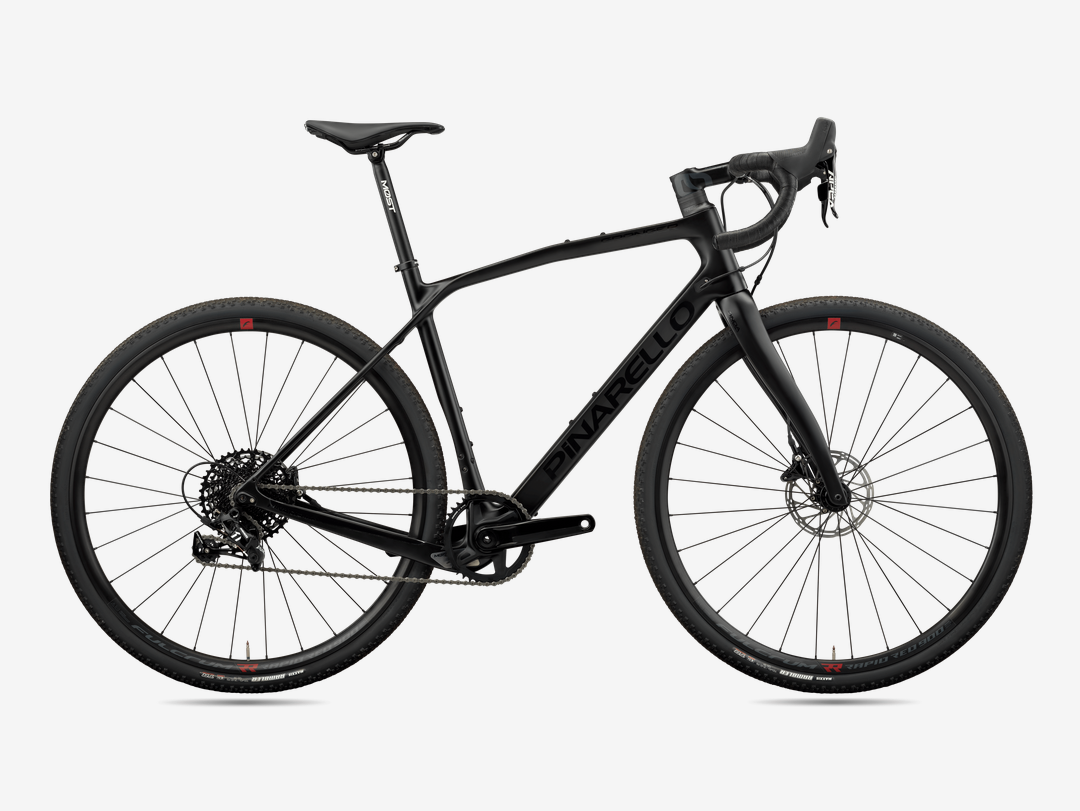

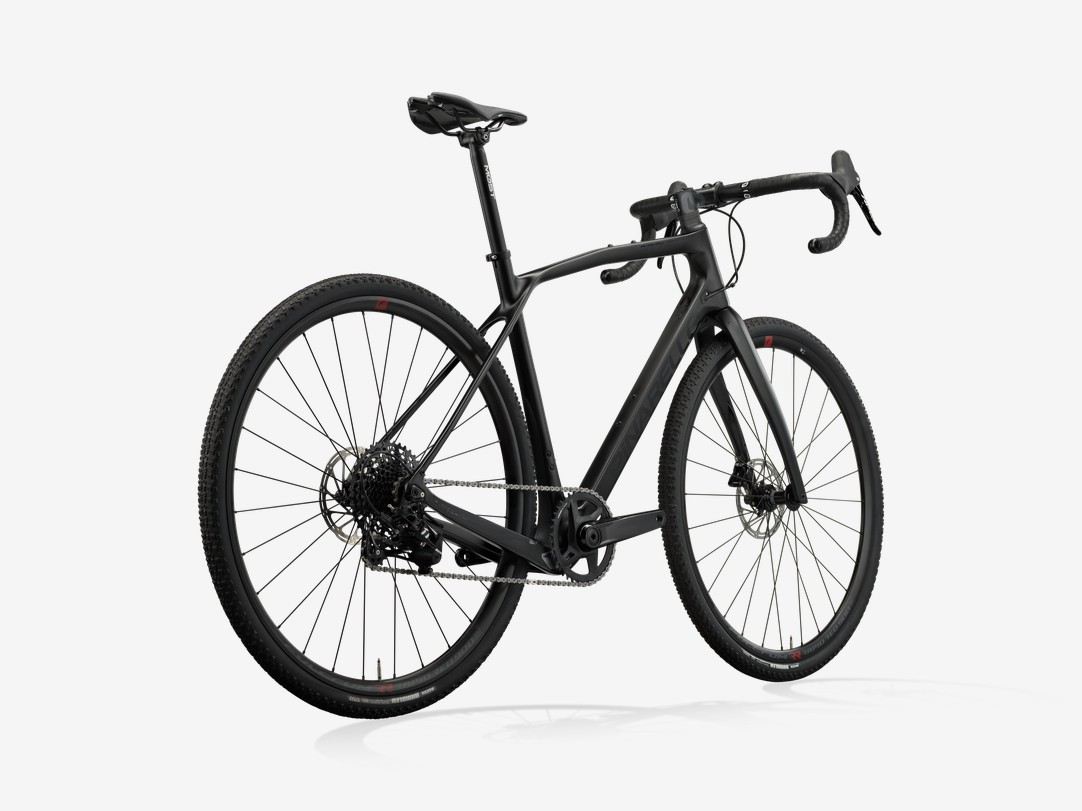

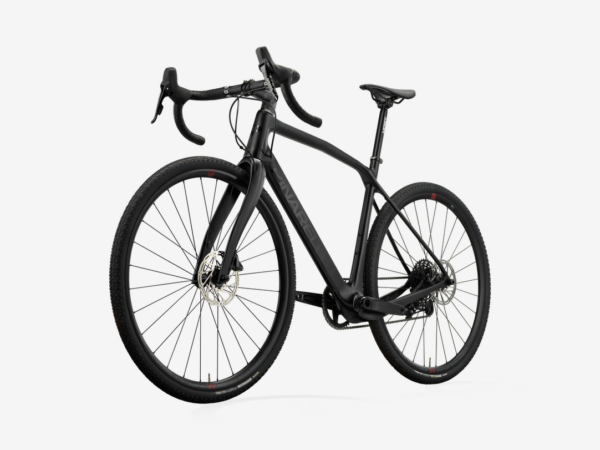

Pinarello Granger X5 Disc GRX 810 – Black on Black
Your Ultimate Adventure Mate
Get ready to step into your next epic adventure. No matter how long or how far, just ride, get lost while exploring and find your inner soul. It’s all about the experience, exploring new destinations and sharing it while you are in the most remote places on Earth.
CARBON T600 UD
A comfort-optimized carbon fiber structure with an unidirectional finishing that absorbs all road vibrations for a pleasurable and comfortable ride.
ASYMMETRIC FRAME
For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.
ONDA FORK
A distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.
Geometries
| CC | L | A [°] | B [°] | P | T | D | R | G | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|
| 470 | 522 | 74.5 | 69.75 | 430 | 125 | 72 | 50 | 395 | 363 | 543.4 |
| 500 | 535 | 74 | 70 | 430 | 137 | 72 | 50 | 395 | 369.9 | 555.7 |
| 530 | 550 | 73.75 | 70.25 | 430 | 155 | 72 | 50 | 395 | 378.4 | 573.6 |
| 550 | 565 | 73.5 | 71 | 430 | 169 | 72 | 47 | 395 | 386.9 | 590.8 |
| 575 | 582 | 73 | 71.25 | 430 | 185 | 72 | 47 | 395 | 394.5 | 607 |
| 600 | 600 | 72.5 | 71.5 | 430 | 202 | 72 | 47 | 395 | 402.2 | 624.1 |
CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
