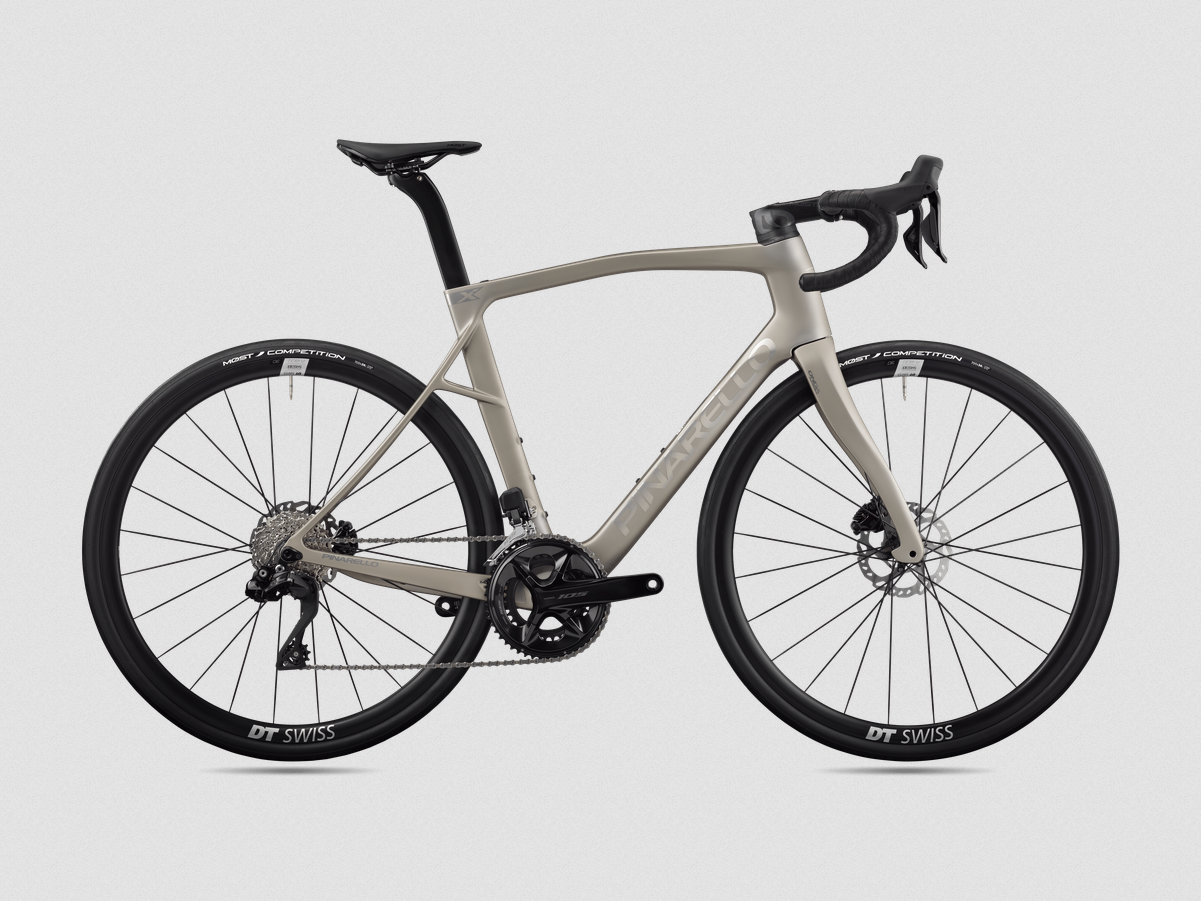

2026 Pinarello F3 105 Di2

53cm in store in stock

BORN TO RACE, NO DISCUSSION

Our history is one of extraordinary victories, iconic bicycles, passion, and expertise. The new Pinarello F was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. For this reason, the Pinarello F is designed to excel on all terrain and is as adept at climbing as it is comfortable on a high-speed descent. This is what we mean by ALL-ROUND PERFORMANCE.

FRAME SET

FRAME

Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved

DRIVETRAIN

CRANKSET AND CHAINRINGS

Shimano 105 Di2 12S

FRONT DERAILLEUR

Shimano 105 Di2 12S

CASSETTE

Shimano 105 Di2 12S

BOTTOM BRACKET

Shimano 105 Di2 12S

BRAKES

FRONT BRAKE DISC

Shimano 105 2 pistons, 160mm rotor

REAR BRAKE DISC

Shimano 105 2 pistons, 160mm rotor

COCKPIT

HANDLEBAR

JAGUAR CLAW ULTRA ALU

STEM

CLAW ULTRA AERO ALU

BAR TAPE

most bar tape

SADDLE

Most Lynx My26

SEATPOST

fsc frontal seat clamp

WHEELS AND TIRES

TYRES DISC

MOST 30

WHEELSET DISC

DT SWISS A1800 30DB

AXLES DISC

NEW MOST Ultra Light Custom Axle 12×100 & 12×142, tool free removal



Please note: Manufacturers can sometimes change the specification of the products from time to time.

NEW PINARELLO F3 105 Di2 Geometry

CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 500 74.4 69.5 406 97 67 43 373 351.3 502.5
450 465 515 74.4 70.5 406 104 72 43 373 365.2 517.7
465 500 525 74 71.4 408 109 72 43 373 372.1 525.5
485 515 535 73.7 72 408 114 72 43 373 378.1 532.3
500 530 545 73.7 72.5 408 123 72 43 373 385.6 542.6
515 545 555 73.4 72.8 410 138 72 43 373 388.3 557.9
525 560 565 73 73.2 410 149.5 72 43 373 390.8 570.3
560 575 578 73 73.7 410 178 72 43 373 395.4 599.3
580 595 600 72.4 73.4 410 220 67 43 373 400.3 633.5

2026 PINARELLO F7 ULTEGRA Di2

BORN TO RACE, NO DISCUSSION

Our history is one of extraordinary victories, iconic bicycles, passion, and expertise. The new Pinarello F was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. For this reason, the Pinarello F is designed to excel on all terrain and is as adept at climbing as it is comfortable on a high-speed descent. This is what we mean by ALL-ROUND PERFORMANCE.

Innovation
TYRE CLEARANCE UP TO 32MM
DOWN TUBE
ONDA FORK
E-TICR HEADSET
HEAD TUBE
AERO KEEL
INTEGRATED SEATCLAMP

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 500 74.4 69.5 406 97 67 43 373 351.3 502.5
450 465 515 74.4 70.5 406 104 72 43 373 365.2 517.7
465 500 525 74 71.4 408 109 72 43 373 372.1 525.5
485 515 535 73.7 72 408 114 72 43 373 378.1 532.3
500 530 545 73.7 72.5 408 123 72 43 373 385.6 542.6
515 545 555 73.4 72.8 410 138 72 43 373 388.3 557.9
525 560 565 73 73.2 410 149.5 72 43 373 390.8 570.3
560 575 578 73 73.7 410 178 72 43 373 395.4 599.3
580 595 600 72.4 73.4 410 220 67 43 373 400.3 633.5
NEW PINARELLO F7 ULTEGRA Di2 Geometry

CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET
FRAME
TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved
DRIVETRAIN
CRANKSET AND CHAINRINGS
Shimano Ultegra 12S
FRONT DERAILLEUR
Shimano Ultegra 12S
CASSETTE
Shimano Ultegra 12S
BOTTOM BRACKET
Shimano Ultegra 12S
BRAKES
FRONT BRAKE DISC
Shimano Ultegra R8150, 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Shimano Ultegra R8150, 2 pistons caliper, 140mm rotor
COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Fast
BAR TAPE
most bar tape
SADDLE
Most Lynx My26
SEATPOST
fsc frontal seat clamp
WHEELS AND TIRES
TYRES DISC
MOST 30
WHEELSET DISC
MOSt Ultrafast 45
AXLES DISC
NEW MOST Ultra Light Custom Axle 12×100 & 12×142, tool free removal
RRP £6,500.00

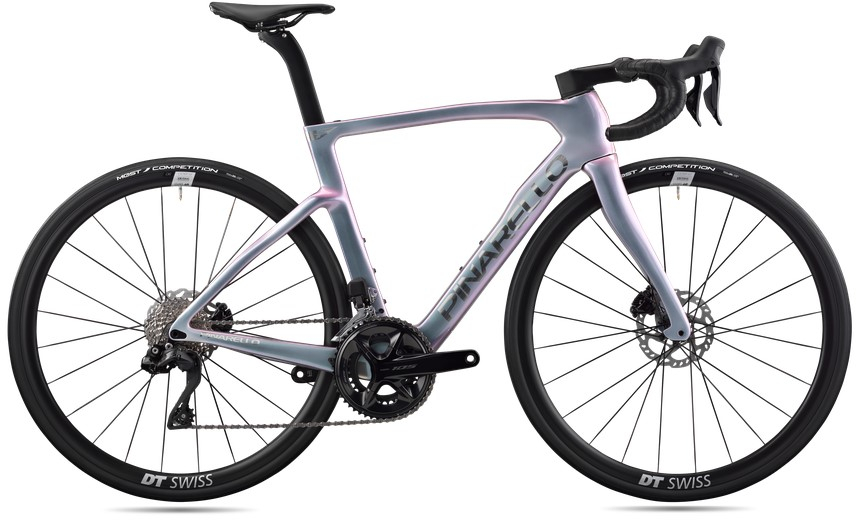

2026 PINARELLO F5 105 Di2

The new 2026 Pinarello F5 here at Cycle-Ops In Tonbridge Kent , leading Pinarello dealer!

etna Black Matt

mail@cycle-ops.co.uk

01732 500534

BORN TO RACE, NO DISCUSSION

Our history is one of extraordinary victories, iconic bicycles, passion, and expertise. The new Pinarello F was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. For this reason, the Pinarello F is designed to excel on all terrain and is as adept at climbing as it is comfortable on a high-speed descent. This is what we mean by ALL-ROUND PERFORMANCE.

Innovation
TYRE CLEARANCE UP TO 32MM
DOWN TUBE
E-TICR HEADSET
ONDA FORK
HEAD TUBE
AERO KEEL
INTEGRATED SEATCLAMP

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 500 74.4 69.5 406 97 67 43 373 351.3 502.5
450 465 515 74.4 70.5 406 104 72 43 373 365.2 517.7
465 500 525 74 71.4 408 109 72 43 373 372.1 525.5
485 515 535 73.7 72 408 114 72 43 373 378.1 532.3
500 530 545 73.7 72.5 408 123 72 43 373 385.6 542.6
515 545 555 73.4 72.8 410 138 72 43 373 388.3 557.9
525 560 565 73 73.2 410 149.5 72 43 373 390.8 570.3
560 575 578 73 73.7 410 178 72 43 373 395.4 599.3
580 595 600 72.4 73.4 410 220 67 43 373 400.3 633.5
NEW PINARELLO F5 105 Di2 Geometry

CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET
FRAME
Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved
DRIVETRAIN
CRANKSET AND CHAINRINGS
Shimano 105 Di2 12S
FRONT DERAILLEUR
Shimano 105 Di2 12S
CASSETTE
Shimano 105 Di2 12S
BOTTOM BRACKET
Shimano 105 Di2 12S
BRAKES
FRONT BRAKE DISC
Shimano 105 2 pistons, 160mm rotor
REAR BRAKE DISC
Shimano 105 2 pistons, 160mm rotor
COCKPIT
HANDLEBAR
JAGUAR CLAW ULTRA ALU
STEM
CLAW ULTRA AERO ALU
SADDLE
Most Lynx My26
SEATPOST
fsc frontal seat clamp
WHEELS AND TIRES
TYRES DISC
MOST 30
WHEELSET DISC
MOSt Ultrafast 45
AXLES DISC
MOST Ultralight Custom Axle 12×100 & 12×142, Tool-free removal

Part Number:C2107157217-33676

GTIN/UPC:8054347142505

RRP £5,000.00

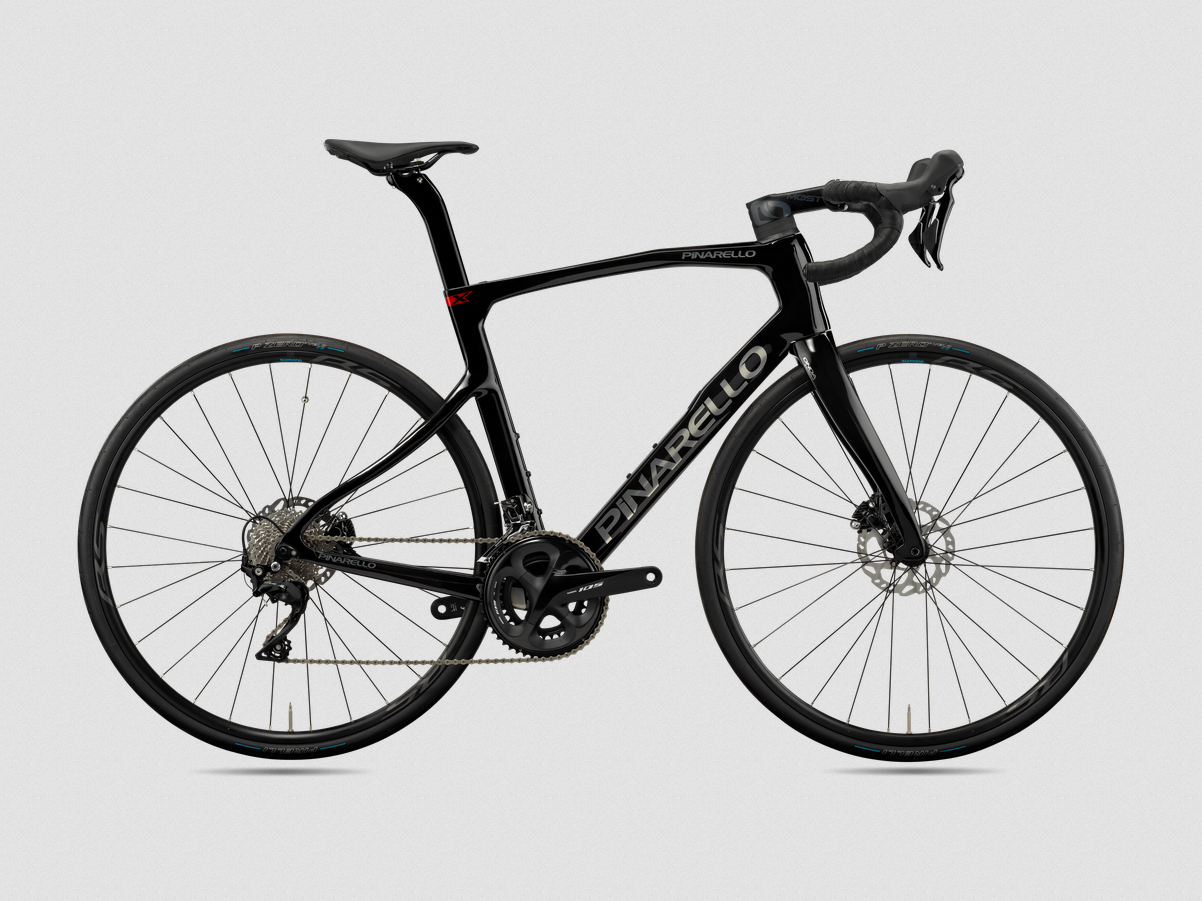

Pinarello F7 Ultegra Di2 51.5

F7 in 51.5cm £6500 (alloy wheels)  in raxor black instcok call – 01732 500534 NOW £6000

BORN TO RACE, NO DISCUSSION

Our history is one of extraordinary victories, iconic bicycles, passion, and expertise. The new Pinarello F was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. For this reason, the Pinarello F is designed to excel on all terrain and is as adept at climbing as it is comfortable on a high-speed descent. This is what we mean by ALL-ROUND PERFORMANCE.

CARBON T900 3K
ONDA FORK
COMPETITION GEOMETRY
ASYMMETRIC FRAME PINARELLO F

CARBON T900 3K

The right balance between reactivity, dampening capabilities and lightness for competition.

ASYMMETRIC FRAME PINARELLO F

For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

ONDA FORK

A distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.

COMPETITION GEOMETRY

30 grand tours have been won on Pinarello bikes. 70 years of victories and continuous improvements have been distilled into what we consider the best race geometry in the industry.

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 500 74.4 69.5 406 97 67 43 373 351.3 502.5
450 465 515 74.4 70.5 406 104 72 43 373 365.2 517.7
465 500 525 74 71.4 408 109 72 43 373 372.1 525.5
485 515 535 73.7 72 408 114 72 43 373 378.1 532.3
500 530 545 73.7 72.5 408 123 72 43 373 385.6 542.6
515 545 555 73.4 72.8 410 138 72 43 373 388.3 557.9
525 560 565 73 73.2 410 149.5 72 43 373 390.8 570.3
560 575 578 73 73.7 410 178 72 43 373 395.4 599.3
580 595 600 72.4 73.4 410 220 67 43 373 400.3 633.5
PINARELLO F7 ULTEGRA Di2 Geometry

CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET
FRAME
TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved
DRIVETRAIN
CRANKSET AND CHAINRINGS
Shimano Ultegra Di2 FD R8150 12S
FRONT DERAILLEUR
Shimano Ultegra Di2 FD R8150 12S
CASSETTE
Shimano Ultegra Di2 FD R8150 12S
CHAIN
Shimano Ultegra Di2 FD R8150 12S
BOTTOM BRACKET
BRAKES
FRONT BRAKE DISC
Shimano Ultegra R8150, 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Shimano Ultegra R8150, 2 pistons caliper, 140mm rotor
COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Light
BAR TAPE
most bar tape
SEATPOST
Pinarello Aero Seatpost
SEAT CLAMP
fsc frontal seat clamp
WHEELS AND TIRES
WHEELSET DISC
MOST Ultrafast 40*
AXLES DISC
Ultra Light Custom Axle 12×100 & 12×142, tool free removal
ACCESSORIES AND NOTES
BOTTLES AND BOTTLE CAGES
Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

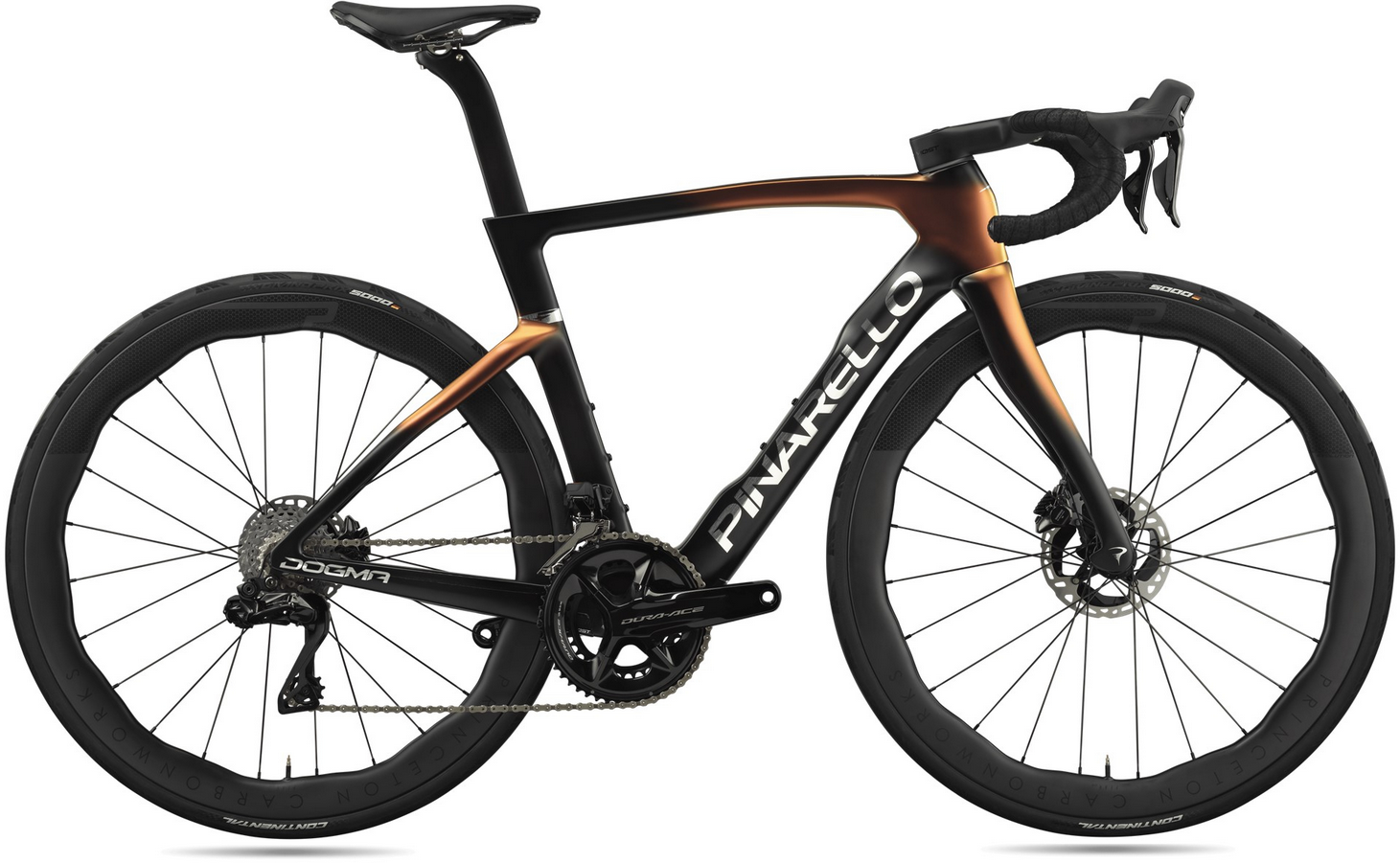

2026 Pinarello Dogma F Disc Dura-Ace Di2

The new 2026 Pinarello Dogma F here at Cycle-Ops In Tonbridge Kent , leading Pinarello dealer!

mail@cycle-ops.co.uk

01732 500534

DESIGN THE EXCEPTIONAL

We’ve always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two.

DOGMA F DURA ACE Di2
Innovation
CARBON M40X
DOWN TUBE
NEW AERO-KEEL BB
TOP TUBE
HEADSET
THRU AXLES
NEW ONDA FORK
INTEGRATED SEAT POST CLAMP
NEW TALON FAST

Video New Dogma F

CARBON M40X

The DOGMA evolves, changing its skin to surprise you one more time. We tested this new carbon fiber lay-up our X-Light models and Ineos Grenadiers team bikes. This new fibre has an exceptional tensile module that allowed us to reach the next level of lateral stiffness performance on the latest generation of our DOGMA F

DOWN TUBE

The downtube has been completely redesigned to reduce the thickness and therefore improve the frontal aerodinamic performance of the frame and the aero drag

NEW AERO-KEEL BB

Trickle-down technology from the Hour Record, The new DOGMA F down tube is rotated by 3.5°, to create a keel shape that improves the aero performance of the BB area by 1.2%.

TOP TUBE

Our unique head tube “nose” shape, introduced first on the DOGMA F8 in 2014, evolves again, reducing the volume and the width of of the nose area by 8mm with a more streamlined design to improve the frontal aero penetration.

HEADSET

To reduce so much the width of headtube we had to design an innovative elliptical steering tube and a completely new headset with differentiated bearings diameter, wider on the bottom and narrower at the top.

THRU AXLES

New shorter thru axles. The bolt on the righ side of the fork has been integrated in the carbon eliminating the external hole. Same has been done also on the frame with the additional integration of the rear derailleur dropout. This solution improves both design and aero performances of the frame

NEW <span>ONDA FORK</span>

NEW ONDA FORK

The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on the descents.

INTEGRATED SEAT POST CLAMP

Our seatpost clamp has been reduced in size and fully integrated inside the frame seat tube. This new solution reduces the weight, improves the design and increases the cleanliness of the system by limiting the amount of dust and sweat that can access the clamp.

NEW TALON FAST

The new Talon Ultra Fast integrated cockpit is lighter and more aero. It is designed with a natural twisted lever position to allow our riders to find a more aero position in a safe manner.

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 500 74.4 69.5 407 102 67 47 373 351.5 502
450 465 515 74.4 70.5 407 109 72 47 373 365.4 517.3
465 500 525 74 71.4 407 114 72 47 373 372.2 525.2
485 515 535 73.7 72 407 119 72 47 373 378.2 532.1
500 530 545 73.7 72.5 407 128 72 47 373 383.3 542.4
510 540 550 73.4 72.8 408 136 72 47 373 385.3 551
520 550 557 73.4 72.8 408 147 72 47 373 389.2 561.5
525 560 565 73 73.2 409 154.5 72 47 373 390.8 570.1
540 575 575 73 73.7 409 168 72 47 373 396.7 584.8
560 595 587 72.4 73.4 409 204 67 47 373 393.4 613.2
600 620 620 72 73.4 411 244 67 47 373 410 651.6
DOGMA F DURA ACE Di2 Geometry

CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET
FRAME
TorayCa M40X, TiCR™ Cable Routing, Italian BB
FORK
NEW eTICR Onda Fork with ForkFlap™, 1.5′ upper and lower steerer
WEIGHT
6.77kg. Weight in size 53, Shimano Dura Ace, Princeton Peak 4550 wheels, w/o pedals and w/o bottles
DRIVETRAIN
CRANKSET AND CHAINRINGS
Shimano Dura Ace FC-R9200, HollowTech 2, 12s
FRONT DERAILLEUR
Shimano Dura Ace Di2 FD-9200 12S
REAR DERAILLEUR
Shimano Dura Ace Di2 RD-R9200 12s
CASSETTE
Shimano Dura Ace CS-R9200 12S
CHAIN
Shimano Dura Ace CN-HG 12S
BOTTOM BRACKET
Shimano Dura Ace SM-BB9200
BRAKES
FRONT BRAKE DISC
Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Dura Ace BR-R9200, 2 pistons caliper, 140mm rotor
COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Fast
BAR TAPE
most bar tape
SADDLE
Most Lynx Ultrafast Superflow L Carbon Large 145mm
SEATPOST
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
WHEELS AND TIRES
TYRES DISC
Continental Gran Prix 5000S TR28-622
WHEELSET DISC
PRINCETON PEAK 4550 DB
AXLES DISC
NEW MOST Ultra Light Custom Axle 12×100 & 12×142, tool free removal

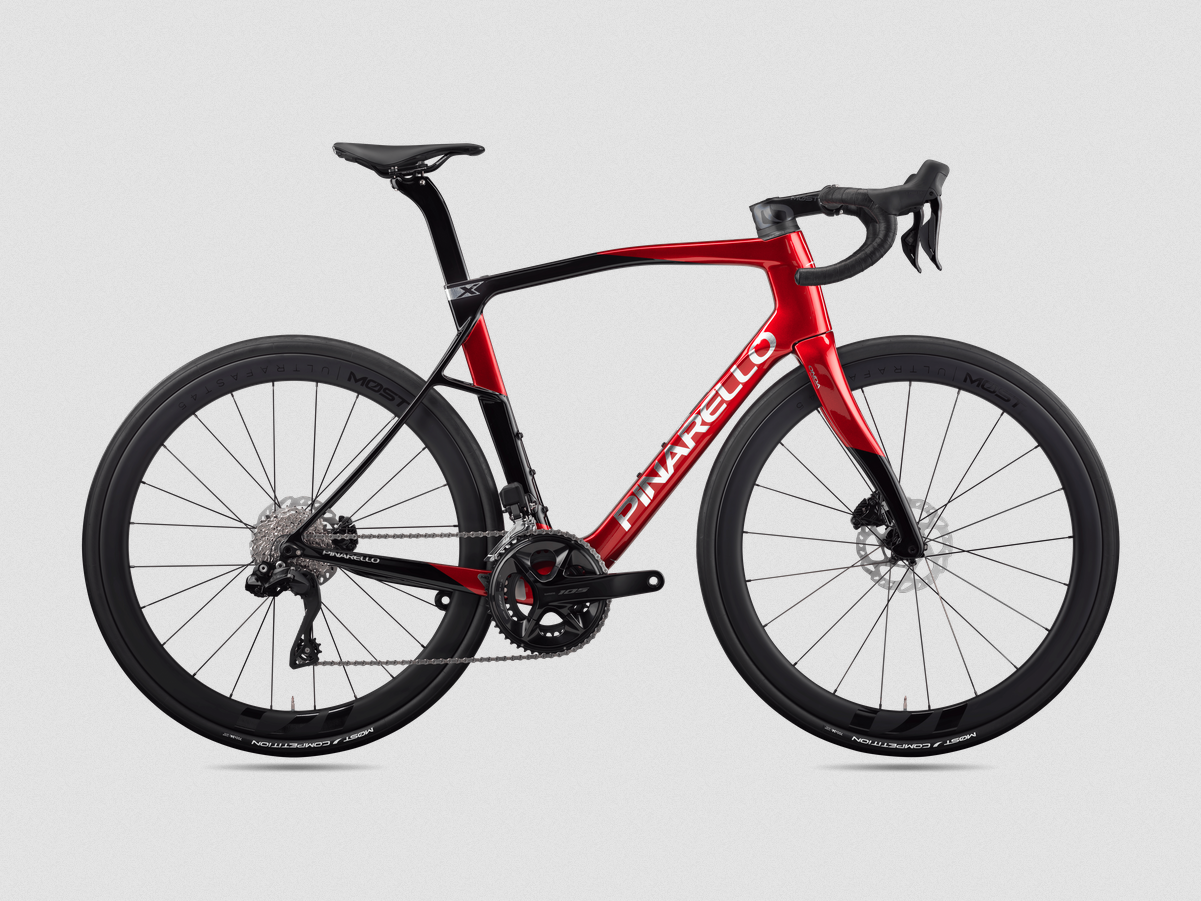

2026 Pinarello X5 Shimano 105 Di2 Most Carbon Wheels

The new 2026 Pinarello X5 here at Cycle-Ops In Tonbridge Kent , leading Pinarello dealer!

mail@cycle-ops.co.uk

01732 500534

X MARKS THE SPOT WHERE CYCLING MEETS EMOTION

These bikes have been specifically designed to maximise rider comfort and vibration absorption, thanks to the innovative use of carbon fiber layup and a redesigned rear triangle.

PINARELLO X5 SHIMANO 105 Di2
Innovation
CARBON T700 UD
ENDURANCE+ GEOMETRY
X STAYS
TYRE CLEARANCE UP TO 35MM
ASYMMETRIC FRAME

Pinarello X Series Video

CARBON T700 <span>UD</span>

CARBON T700 UD

The secret of T700 Toray Carbon is to maintain reactivity and performances but to offer a higher dampening to absorb all road vibration. More comfort, more fun.

ENDURANCE+ <span>GEOMETRY</span>

ENDURANCE+ GEOMETRY

Higher stack and a more compact reach, promoting a relaxed riding position that allows bike fitters to accurately fit all kinds of cyclists.

X STAYS

X STAYS

A new Pinarello technology capable of absorbing vibrations maintaining a light weight frame and a very reactive BB stiffness

TYRE CLEARANCE <span> UP TO 35MM </span>

TYRE CLEARANCE UP TO 35MM

35mm tires to unlock the frames’ true potential in terms of both comfort and speed.

ASYMMETRIC <span>FRAME</span>

ASYMMETRIC FRAME

For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 492 75.25 70 422 123 67 52 375 341.9 527.5
450 460 509 74.5 70.5 422 128 72 52 375 352.1 539.2
470 490 525 74 71 422 140 72 52 375 361.9 552.4
495 515 536 73.75 71.5 422 149 72 47 375 368.5 564.4
510 530 545 73.5 72 422 159 72 47 375 372.5 575.8
525 545 555 73.25 72.25 422 171 72 47 375 376.7 588.2
540 560 565 73 72.5 422 185 72 47 375 380.2 602.4
560 580 577 72.75 72.5 422 209 67 47 375 384.1 620.3
590 600 590 72.5 72.5 422 230 67 47 375 388.1 640.4
PINARELLO X5 SHIMANO 105 Di2 Geometry

CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET
FRAME
Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved
DRIVETRAIN
CRANKSET AND CHAINRINGS
Shimano 105 Di2 12S
FRONT DERAILLEUR
Shimano 105 Di2 12S
REAR DERAILLEUR
Shimano 105 Di2 12S
CASSETTE
Shimano 105 Di2 12S
CHAIN
Shimano 105 Di2 12S
BOTTOM BRACKET
shimano 105
BRAKES
FRONT BRAKE DISC
Shimano 105 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Shimano 105 2 pistons caliper, 160mm rotor
COCKPIT
HANDLEBAR
MOST Jaguar XA TiCR
STEM
Tiger Aero Alu TiCR
BAR TAPE
MOST Ultragrip Evo 3mm – Black
SEAT CLAMP
fsc frontal seat clamp
WHEELS AND TIRES
TYRES DISC
Pirelli P7 Sport 35-622 black 60 tpi Nylon breaker
WHEELSET DISC
FULCRUM Racing 800DB*
AXLES DISC
MOST Ultralight Custom Axle 12×100 & 12×142, Tool-free removal

The new 2026 Pinarello X5 here at Cycle-Ops In Tonbridge Kent , leading Pinarello dealer!

mail@cycle-ops.co.uk

01732 500534

2026 Pinarello X3 105 Di2

The new 2026 Pinarello X3 here at Cycle-Ops In Tonbridge Kent , leading Pinarello dealer!

Impulse Grey Matt & Victoria Blue Matt

X3 54.5cm Impulse Grey Matt In Stock

mail@cycle-ops.co.uk

01732 500534

TRUE CYCLING EXPERIENCE

Not every cyclist wants to push their body to the extreme, trying to fit on a bike that was designed for the pro peloton, so we went back to the drawing board for the Pinarello X and designed a new geometry that offers all-day comfort without renouncing our legendary performance DNA. Thanks to a combination of specifically-selected materials, unique geometry, and a truly innovative rear-end, the Pinarello X strikes the perfect balance between reactivity, performance and comfort.

PINARELLO X3 105 Di2
Innovation
ONDA FORK
FLEX STAYS
ASYMMETRIC FRAME PINARELLO X
CARBON T700 UD

2026 Pinarello X1 Disc 105 Shimano RS171

The new Pinarello X1 here at Cycle-Ops In Tonbridge Kent , leading Pinarello dealer!

Shiny black and Peral white in stock.

mail@cycle-ops.co.uk

01732 500534

ALL COMPONENTS

FRAME SET

FRAME

Torayca T600 UD, internal cable routing, Italian BB, UCI approved

DRIVETRAIN

CRANKSET AND CHAINRINGS

shimano 105

FRONT DERAILLEUR

shimano 105

CASSETTE

shimano 105

CHAIN

shimano 105

BOTTOM BRACKET

shimano 105

BRAKES

FRONT BRAKE DISC

Shimano 105 2 pistons, 160mm rotor
Shimano 105 2 pistons, 160mm rotor

COCKPIT

HANDLEBAR

Jaguar XA Aero TiCR

BAR TAPE

Tiger Aero Alu TiCR

SEATPOST

Pinarello Aero Seatpost

SEAT CLAMP

fsc frontal seat clamp

WHEELS AND TIRES

AXLES DISC

Shimano RS171



Please note: Manufacturers can sometimes change the specification of the products from time to time.

Geometries

PINARELLO X1 105 Geometry

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 492 75.25 70 415 125 67 52 373 341.9 527.5
450 460 509 74.5 70.5 415 130 72 52 373 352.1 539.2
470 490 525 74 71 415 142 72 52 373 361.9 552.4
495 515 536 73.75 71.5 415 151 72 47 373 368.5 564.4
510 530 545 73.5 72 415 161 72 47 373 372.5 575.8
525 545 555 73.25 72.25 415 173 72 47 373 376.7 588.2
540 560 565 73 72.5 415 187 72 47 373 380.2 602.4
560 580 577 72.75 72.5 415 211 67 47 373 384.1 620.3
590 600 590 72.5 72.5 415 232 67 47 373 388.1 640.4

PINARELLO DOGMA F DISC DURA-ACE Di2 DT SWISS BICYCLE

ALL COMPONENTS

FRAME SET

FRAME

TorayCa M40X, TiCR™ Cable Routing, Italian BB

FORK

NEW eTICR Onda Fork with ForkFlap™, 1.5′ upper and lower steerer

WEIGHT

6.77kg. Weight in size 53, Shimano Dura Ace, Princeton Peak 4550 wheels, w/o pedals and w/o bottles

DRIVETRAIN

CRANKSET AND CHAINRINGS

Shimano Dura Ace FC-R9200, HollowTech 2, 12s

FRONT DERAILLEUR

Shimano Dura Ace Di2 FD-9200 12S

REAR DERAILLEUR

Shimano Dura Ace Di2 RD-R9200 12s

CASSETTE

Shimano Dura Ace CS-R9200 12S

CHAIN

Shimano Dura Ace CN-HG 12S

BOTTOM BRACKET

Shimano Dura Ace SM-BB9200

BRAKES

FRONT BRAKE DISC

Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor

REAR BRAKE DISC

Dura Ace BR-R9200, 2 pistons caliper, 140mm rotor

COCKPIT

INTEGRATED HANDLEBAR

MOST Talon Ultra Fast

BAR TAPE

most bar tape

SADDLE

Most Lynx Ultrafast Superflow L Carbon Large 145mm

SEATPOST

Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts

WHEELS AND TIRES

TYRES DISC

Continental Gran Prix 5000S TR28-622

WHEELSET DISC

DTSWISS ARC 1400

AXLES DISC

NEW MOST Ultra Light Custom Axle 12×100 & 12×142, tool free removal

Geometries

DOGMA F SRAM RED ETAP AXS Geometry

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 500 74.4 69.5 407 102 67 47 373 351.5 502
450 465 515 74.4 70.5 407 109 72 47 373 365.4 517.3
465 500 525 74 71.4 407 114 72 47 373 372.2 525.2
485 515 535 73.7 72 407 119 72 47 373 378.2 532.1
500 530 545 73.7 72.5 407 128 72 47 373 383.3 542.4
510 540 550 73.4 72.8 408 136 72 47 373 385.3 551
520 550 557 73.4 72.8 408 147 72 47 373 389.2 561.5
525 560 565 73 73.2 409 154.5 72 47 373 390.8 570.1
540 575 575 73 73.7 409 168 72 47 373 396.7 584.8
560 595 587 72.4 73.4 409 204 67 47 373 393.4 613.2
600 620 620 72 73.4 411 244 67 47 373 410 651.6

Pinarello Dogma X Dura-Ace Di2 E202 XOLAR BLACK FRAME KIT ONLY

54CM IN STOCK

PURE CYCLING MULTIPLIED BY X

Inspired by riders who enjoy long days in the saddle, the DOGMA X is about more than just performance; the bike has been engineered from the ground up to heighten the emotional experience of cycling and reshape how we think about endurance and speed.

It will redefine how we think about performance, offering real-world comfort.

CARBON T1100 1K
X STAYS
ASYMMETRIC FRAME PINARELLO X
ENDURANCE GEOMETRY
TYRE CLEARANCE UP TO 35MM

CARBON T1100 1K

High tensile and high modulus carbon fiber with patented Nanoalloy Technology for extreme performances.

ENDURANCE GEOMETRY

A brand new approach that strikes the perfect balance between high-calibre performance and real-world comfort.

X STAYS

A new Pinarello technology capable of absorbing vibrations maintaining a light weight frame and a very reactive BB stiffness

ASYMMETRIC FRAME PINARELLO X

For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

TYRE CLEARANCE UP TO 35MM

35mm tires to unlock the frames’ true potential in terms of both comfort and speed.

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 492 75.25 70 422 123 67 52 375 341.9 527.5
450 460 509 74.5 70.5 422 128 72 52 375 352.1 539.2
470 490 525 74 71 422 140 72 52 375 361.9 552.4
495 515 536 73.75 71.5 422 149 72 47 375 368.5 564.4
510 530 545 73.5 72 422 159 72 47 375 372.5 575.8
525 545 555 73.25 72.25 422 171 72 47 375 376.7 588.2
540 560 565 73 72.5 422 185 72 47 375 380.2 602.4
560 580 577 72.75 72.5 422 209 67 47 375 384.1 620.3
590 600 590 72.5 72.5 422 230 67 47 375 388.1 640.4
DOGMA X DURA ACE Di2 Geometry

CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET
FRAME
TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved
SEATPOST
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
SEAT CLAMP
Seatclamp Twinforce, titanium bolts
AXLES DISC
Ultra Light Custom Axle 12×100 & 12×142, tool free removal
ACCESSORIES AND NOTES

Some say we are the Best Bike shop kent

get yours form us , kents leading bike shop
