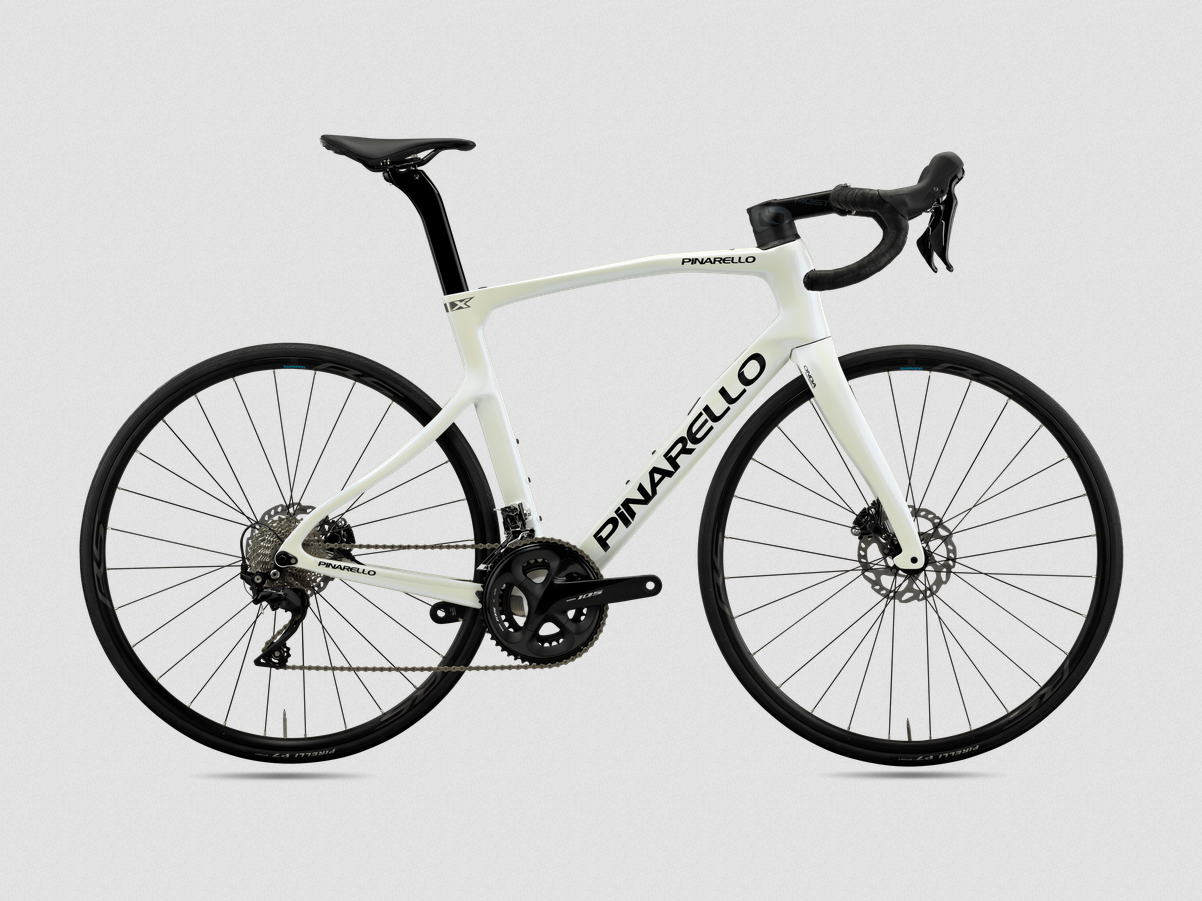

2026 Pinarello X1 Disc 105 Shimano RS171
£3,000.00
The new Pinarello X1 here at Cycle-Ops In Tonbridge Kent , leading Pinarello dealer!
Shiny black and Peral white in stock.
mail@cycle-ops.co.uk
01732 500534
ALL COMPONENTS
FRAME SET
FRAME
Torayca T600 UD, internal cable routing, Italian BB, UCI approved
DRIVETRAIN
CRANKSET AND CHAINRINGS
shimano 105
FRONT DERAILLEUR
shimano 105
CASSETTE
shimano 105
CHAIN
shimano 105
BOTTOM BRACKET
shimano 105
BRAKES
FRONT BRAKE DISC
Shimano 105 2 pistons, 160mm rotor
Shimano 105 2 pistons, 160mm rotor
COCKPIT
HANDLEBAR
Jaguar XA Aero TiCR
BAR TAPE
Tiger Aero Alu TiCR
SEATPOST
Pinarello Aero Seatpost
SEAT CLAMP
fsc frontal seat clamp
WHEELS AND TIRES
AXLES DISC
Shimano RS171
Please note: Manufacturers can sometimes change the specification of the products from time to time.
Geometries
| CE | CC | L | A [°] | B [°] | P | T | D | R | G | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 430 | 492 | 75.25 | 70 | 415 | 125 | 67 | 52 | 373 | 341.9 | 527.5 |
| 450 | 460 | 509 | 74.5 | 70.5 | 415 | 130 | 72 | 52 | 373 | 352.1 | 539.2 |
| 470 | 490 | 525 | 74 | 71 | 415 | 142 | 72 | 52 | 373 | 361.9 | 552.4 |
| 495 | 515 | 536 | 73.75 | 71.5 | 415 | 151 | 72 | 47 | 373 | 368.5 | 564.4 |
| 510 | 530 | 545 | 73.5 | 72 | 415 | 161 | 72 | 47 | 373 | 372.5 | 575.8 |
| 525 | 545 | 555 | 73.25 | 72.25 | 415 | 173 | 72 | 47 | 373 | 376.7 | 588.2 |
| 540 | 560 | 565 | 73 | 72.5 | 415 | 187 | 72 | 47 | 373 | 380.2 | 602.4 |
| 560 | 580 | 577 | 72.75 | 72.5 | 415 | 211 | 67 | 47 | 373 | 384.1 | 620.3 |
| 590 | 600 | 590 | 72.5 | 72.5 | 415 | 232 | 67 | 47 | 373 | 388.1 | 640.4 |
