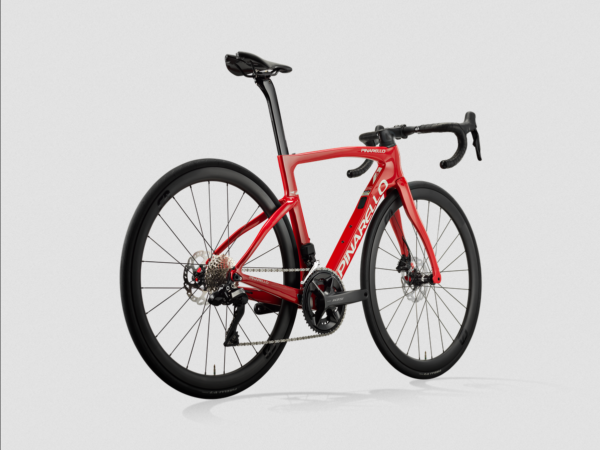

PINARELLO F5 105 Di2 – Furious Red

£5,250.00 £4,500.00

BORN TO RACE, NO DISCUSSION

Our history is one of extraordinary victories, iconic bicycles, passion, and expertise. The new Pinarello F was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. For this reason, the Pinarello F is designed to excel on all terrain and is as adept at climbing as it is comfortable on a high-speed descent. This is what we mean by ALL-ROUND PERFORMANCE.

CARBON T700 UD

The secret of T700 Toray Carbon is to maintain reactivity and performances but to offer a higher dampening to absorb all road vibration. More comfort, more fun.

ASYMMETRIC FRAME PINARELLO F

For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

ONDA FORK

A distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.

COMPETITION GEOMETRY

30 grand tours have been won on Pinarello bikes. 70 years of victories and continuous improvements have been distilled into what we consider the best race geometry in the industry.

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 500 74.4 69.5 406 97 67 43 373 351.3 502.5
450 465 515 74.4 70.5 406 104 72 43 373 365.2 517.7
465 500 525 74 71.4 408 109 72 43 373 372.1 525.5
485 515 535 73.7 72 408 114 72 43 373 378.1 532.3
500 530 545 73.7 72.5 408 123 72 43 373 385.6 542.6
515 545 555 73.4 72.8 410 138 72 43 373 388.3 557.9
525 560 565 73 73.2 410 149.5 72 43 373 390.8 570.3
560 575 578 73 73.7 410 178 72 43 373 395.4 599.3
580 595 600 72.4 73.4 410 220 67 43 373 400.3 633.5
PINARELLO F5 105 Di2 Geometry

CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET
FRAME
Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved
DRIVETRAIN
CRANKSET AND CHAINRINGS
Shimano 105 Di2 12S
CASSETTE
Shimano 105 Di2 12S
CHAIN
Shimano 105 Di2 12S
BOTTOM BRACKET
Shimano 105 Di2 12S
BRAKES
FRONT BRAKE DISC
Shimano 105 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Shimano 105 2 pistons caliper, 160mm rotor
COCKPIT
HANDLEBAR
Jaguar XA Aero TiCR
SEAT CLAMP
fsc frontal seat clamp
WHEELS AND TIRES
WHEELSET DISC
FULCRUM Racing 800DB*
AXLES DISC
MOST Ultralight Custom Axle 12×100 & 12×142, Tool-free removal
