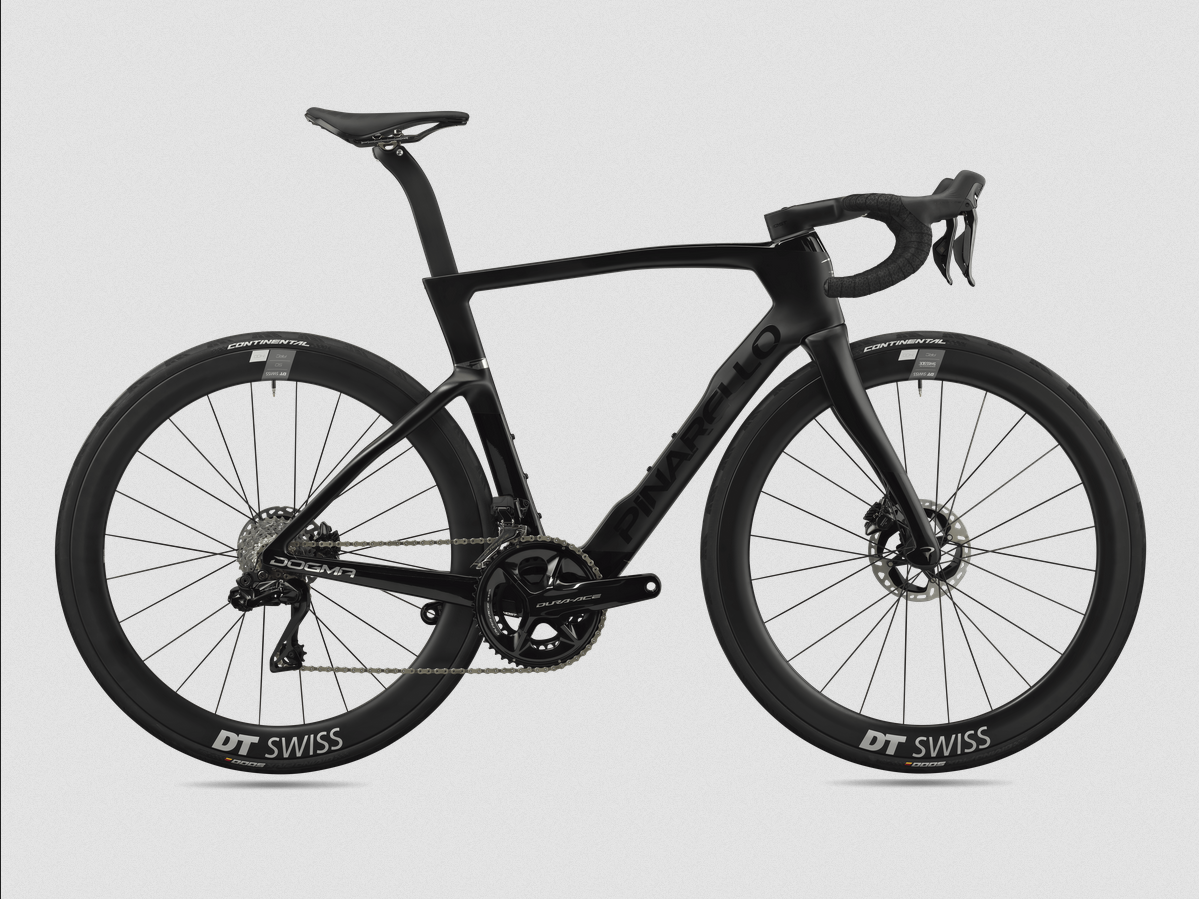

We’ve always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two.
CARBON M40X
CARBON M40X
The DOGMA evolves, changing its skin to surprise you one more time. We tested this new carbon fiber lay-up our X-Light models and Ineos Grenadiers team bikes. This new fibre has an exceptional tensile module that allowed us to reach the next level of lateral stiffness performance on the latest generation of our DOGMA F.
DOWN TUBE
The downtube has been completely redesigned to reduce the thickness and therefore improve the frontal aerodinamic performance of the frame and the aero drag
NEW AERO-KEEL BB
Trickle-down technology from the Hour Record, The new DOGMA F down tube is rotated by 3.5°, to create a keel shape that improves the aero performance of the BB area by 1.2%.
TOP TUBE
Our unique head tube “nose” shape, introduced first on the DOGMA F8 in 2014, evolves again, reducing the volume and the width of of the nose area by 8mm with a more streamlined design to improve the frontal aero penetration.
HEADSET
To reduce so much the width of headtube we had to design an innovative elliptical steering tube and a completely new headset with differentiated bearings diameter, wider on the bottom and narrower at the top.
THRU AXLES
New shorter thru axles. The bolt on the righ side of the fork has been integrated in the carbon eliminating the external hole. Same has been done also on the frame with the additional integration of the rear derailleur dropout. This solution improves both design and aero performances of the frame
NEW ONDA FORK
The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on the descents.
INTEGRATED SEAT POST CLAMP
Our seatpost clamp has been reduced in size and fully integrated inside the frame seat tube. This new solution reduces the weight, improves the design and increases the cleanliness of the system by limiting the amount of dust and sweat that can access the clamp.
NEW TALON FAST
The new Talon Ultra Fast integrated cockpit is lighter and more aero. It is designed with a natural twisted lever position to allow our riders to find a more aero position in a safe manner.
Geometries
CE
CC
L
A [°]
B [°]
P
T
D
R
G
REACH
STACK
425
430
500
74.4
69.5
407
102
67
47
373
351.5
502
450
465
515
74.4
70.5
407
109
72
47
373
365.4
517.3
465
500
525
74
71.4
407
114
72
47
373
372.2
525.2
485
515
535
73.7
72
407
119
72
47
373
378.2
532.1
500
530
545
73.7
72.5
407
128
72
47
373
385.6
542.4
510
540
550
73.4
72.8
408
136
72
47
373
385.3
551
520
550
557
73.4
72.8
408
147
72
47
373
389.2
561.5
525
560
565
73
73.2
409
154.5
72
47
373
390.8
570.1
540
575
575
73
73.7
409
168
72
47
373
396.7
584.8
560
595
587
72.4
73.4
409
204
67
47
373
393.4
613.2
600
620
620
72
73.4
411
244
67
47
373
410
651.6
CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
ALL COMPONENTS
FRAME SET
FRAME
TorayCa M40X, TiCR™ Cable Routing, Italian BB
FORK
NEW eTICR Onda Fork with ForkFlap™, 1.5′ upper and lower steerer
WEIGHT
6.63kg. Weight in size 53, SRAM RED Etap, Princeton Peak 4550 wheels, w/o pedals and w/o bottles
DRIVETRAIN
CRANKSET AND CHAINRINGS
SRAM Red ETAP AXS 12S
FRONT DERAILLEUR
SRAM Red ETAP AXS 12S
REAR DERAILLEUR
SRAM Red ETAP AXS 12S
CASSETTE
Sram Red XG-1290
BRAKES
FRONT BRAKE DISC
Sram Red 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Sram Red 2 pistons caliper, 160mm rotor
COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Fast
SADDLE
Most Lynx Ultrafast Superflow L Carbon Large 145mm
SEATPOST
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
WHEELS AND TIRES
TYRES DISC
Continental Gran Prix 5000S TR28-622
WHEELSET DISC
PRINCETON PEAK 4550 DB*
AXLES DISC
NEW MOST Ultra Light Custom Axle 12×100 & 12×142, tool free removal
ACCESSORIES AND NOTES
BOTTLES AND BOTTLE CAGES
Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black
* also available with DTSWISS ARC 1400
