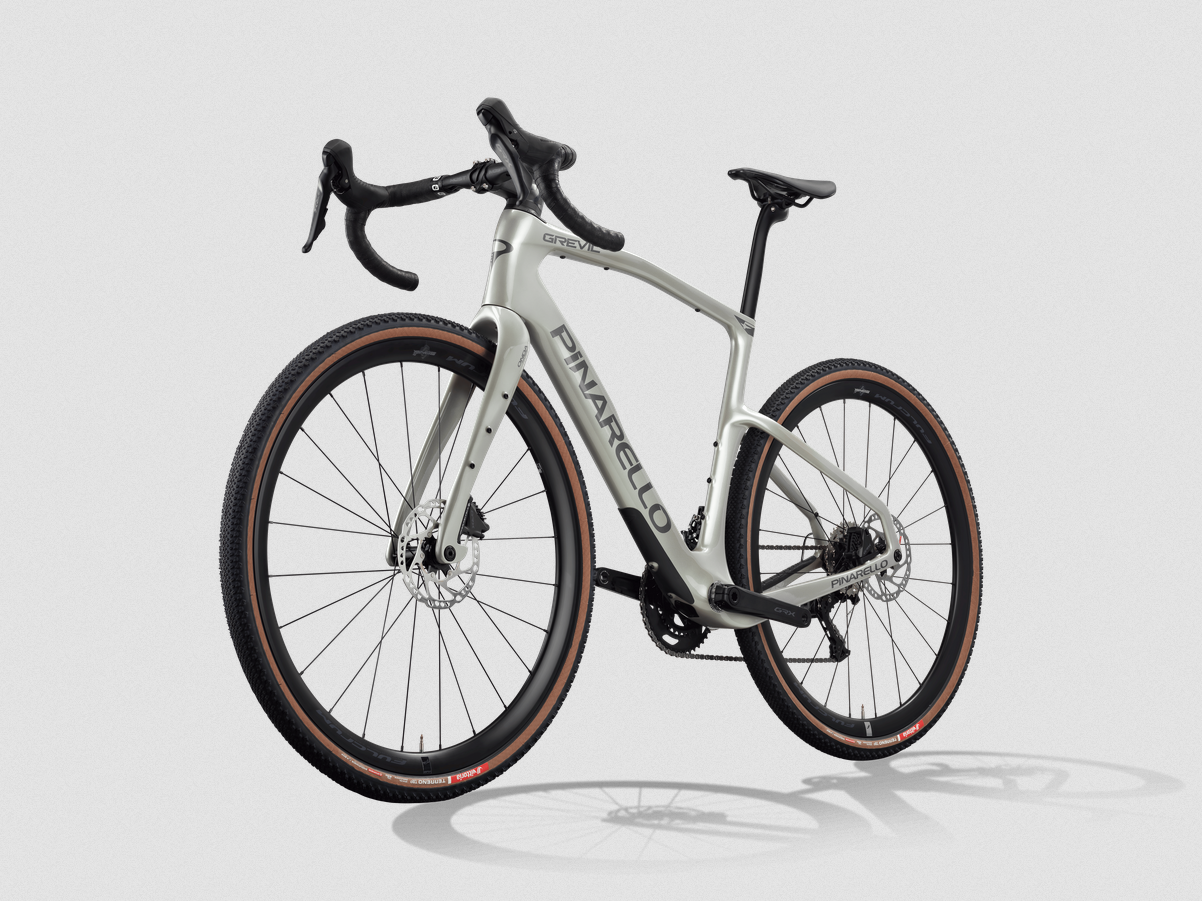

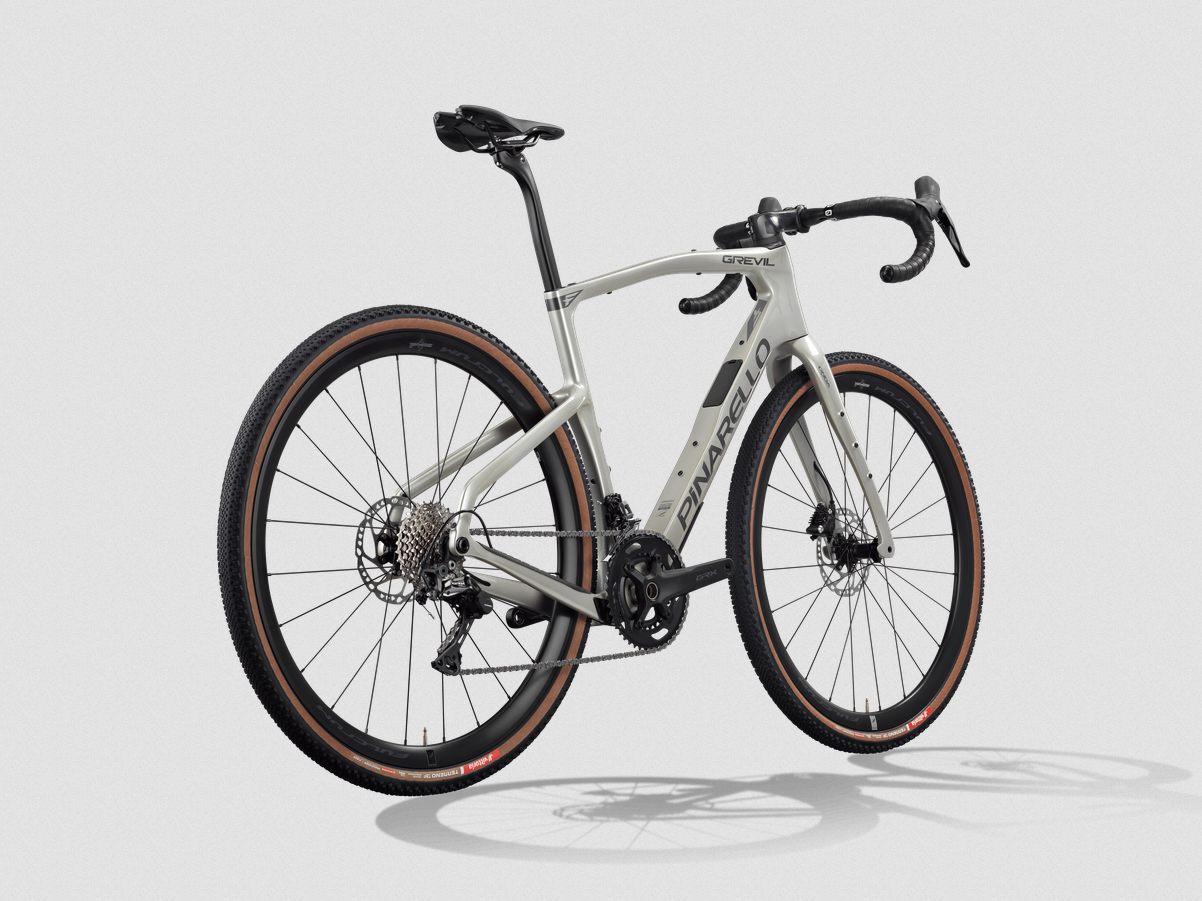

2026 PINARELLO GREVIL F1 SHIMANO GRX 610
£3,000.00
Only 1 left in stock
55cm IN STOCK
TAILORED TO PERFORM EVERYWHERE
The new generation of Grevil F is lighter, faster, and designed to be ridden for days on end. No matter the conditions or the duration of the race, the bike’s versatility provides the perfect solution to help you compete to win.
Innovation
SOLO DYNAMICS
FRAME BAG
GRAVEL TT BARS
ADAPTIVE SEATPOST
TWIN ARMS
DOWN TUBE
NEW ONDA FORK
FRAME BAG
GRAVEL TT BARS
ADAPTIVE SEATPOST
TWIN ARMS
DOWN TUBE
NEW ONDA FORK
Geometries
| CF | CC | L | I | A[°] | B[°] | F | P | T | D | R | G | WB | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 410 | 470 | 530 | 125.6 | 74.5 | 70.25 | 603.9 | 430 | 115 | 72 | 55 | 405 | 1023.5 | 368.4 | 553.2 |
| 440 | 500 | 545 | 137.8 | 74 | 70.5 | 614.5 | 430 | 130 | 72 | 55 | 405 | 1034.2 | 376.1 | 568.3 |
| 470 | 530 | 558 | 148.3 | 73.75 | 70.75 | 625.8 | 430 | 150 | 67 | 55 | 405 | 1047 | 383.7 | 583.2 |
| 490 | 550 | 570 | 156.2 | 73.5 | 71.75 | 621.9 | 430 | 160 | 67 | 50 | 405 | 1043 | 390.4 | 598.4 |
| 510 | 575 | 587 | 168.1 | 73 | 72 | 631.9 | 430 | 175 | 67 | 50 | 405 | 1053.1 | 398.2 | 613.6 |
| 545 | 600 | 607 | 180.4 | 72.5 | 72.25 | 644.3 | 430 | 195 | 67 | 50 | 405 | 1065.5 | 406.9 | 633.7 |
CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
ALL COMPONENTS
FRAME SET
FRAME
TORAY T600 UD
FORK
F Onda Fork with ForkFlap™, Tapered head tube
DRIVETRAIN
CRANKSET AND CHAINRINGS
SHIMANO GRX 610 2×12
CASSETTE
SHIMANO GRX
CHAIN
SHIMANO GRX
BOTTOM BRACKET
SRAM BB DUB ITALIAN 70mm ROAD WIDE
BRAKES
FRONT BRAKE DISC
Shimano GRX, 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Shimano GRX, 2 pistons caliper, 160mm rotor
COCKPIT
HANDLEBAR
JAGUAR XA GR TICR
STEM
TIGER ALU AERO TICR
BAR TAPE
Bar Tape MOST Ultragrip evo 3mm – Black
SADDLE
Most Lynx My26
SEATPOST
D-SHAPE SEATPOST
SEAT CLAMP
classic seat clamp
WHEELS AND TIRES
TYRES DISC
VITTORIA TERRENO T50 45
WHEELSET DISC
FULCRUM SONIQ AL
AXLES DISC
NEW MOST Ultra Light Custom Axle 12×100 & 12×142, tool free removal
£3000
